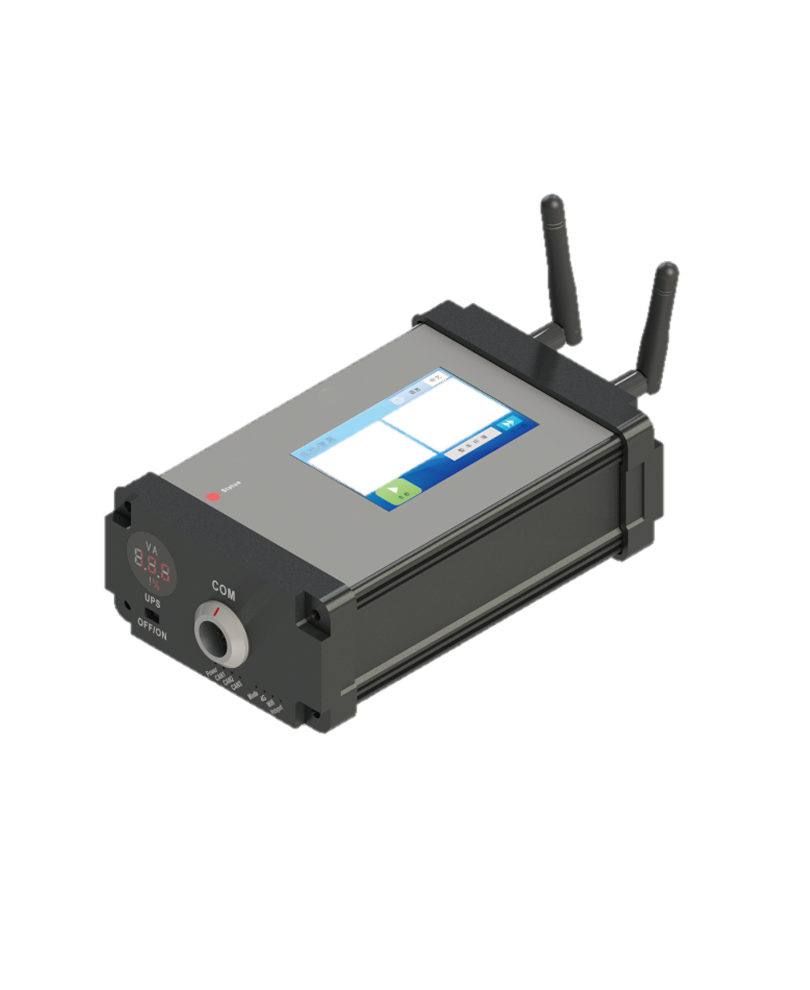

Lithium battery remote diagnostic instrument and cloud platform

Lithium battery remote diagnostic instrument and cloud platform

Portable devices can remotelydiagnose and evaluate the batterypack failure through 4G,
WI Fl or hotspots.
View full details

Product Advantages

  • Safe and reliable equipment, support reverse connection protection, short circuit protection.

High Current Discharge Discharge current can be up to 50A, for the rapid discharge of large-capacity bat teries. The equipment can carryout discharge equalization, and the equalization voltage bounce is verysma11. Safe and reliable equipment, support reverse connection protection, short circuit protection.

  • Simple and convenient operation.

Touch design With a 4.3-inch touch screen display, you can set the discharge parameters through the screen, no need to connect to a PC, simple and convenient operation.

  • Indicator light alarm prompts.

Equipment self-diagnosis Equipment with output short circuit protection, battery undervoltage protection, battery overvoltage protection, single cell reverse connection protection, chassis over- temperature protection. Protection; equipment with major faults automatically alarm, buzzer, indicator light alarm prompts.

  • Discharge strategy According to the target voltage equipment intelligent control

Discharge strategy According to the target voltage equipment intelligent control of the battery dis-charge. Constant current/constant power discharging, when the difference between the batterymodule voltage and the target voltage is large, the batterywill be discharged with high current, and when the difference is less than a certain value, the battery will be discharged with low current. When the detected difference is less than acer- tain value, small current is used to discharge the battery, and the current of both stages can be set.

Product Usage Scenarios

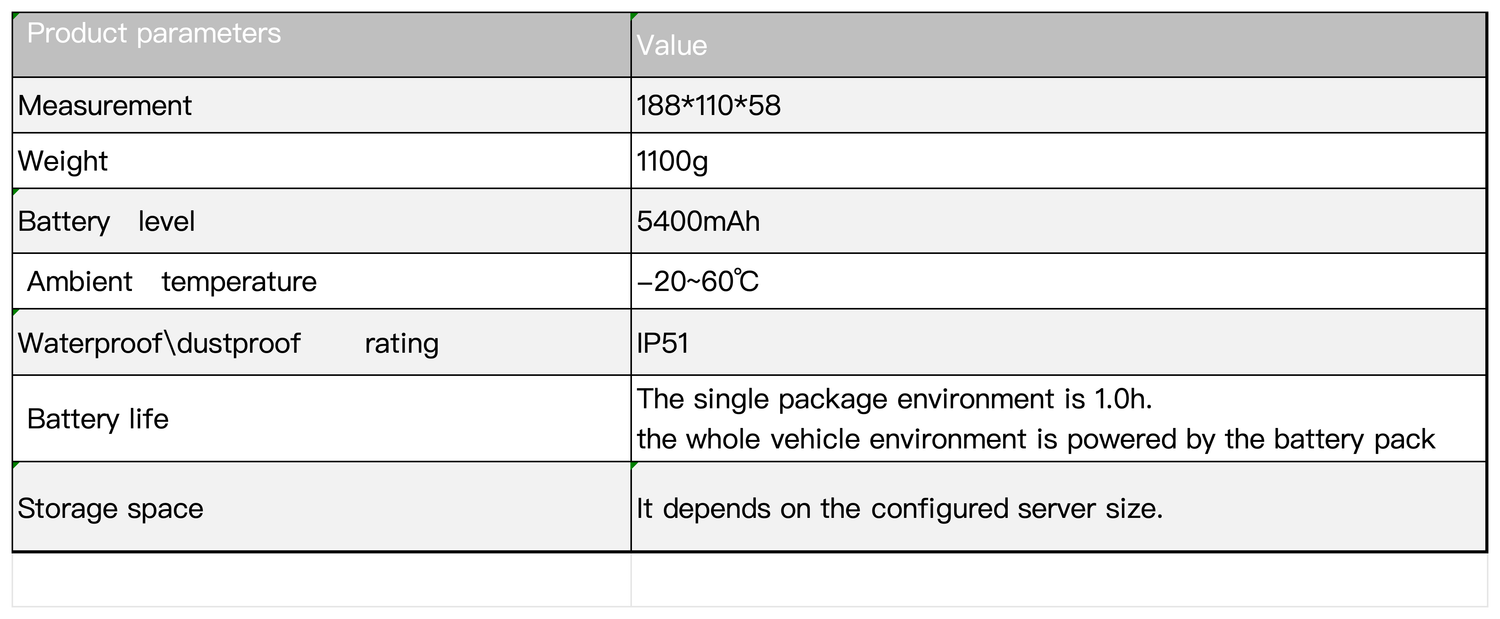

Product Data
