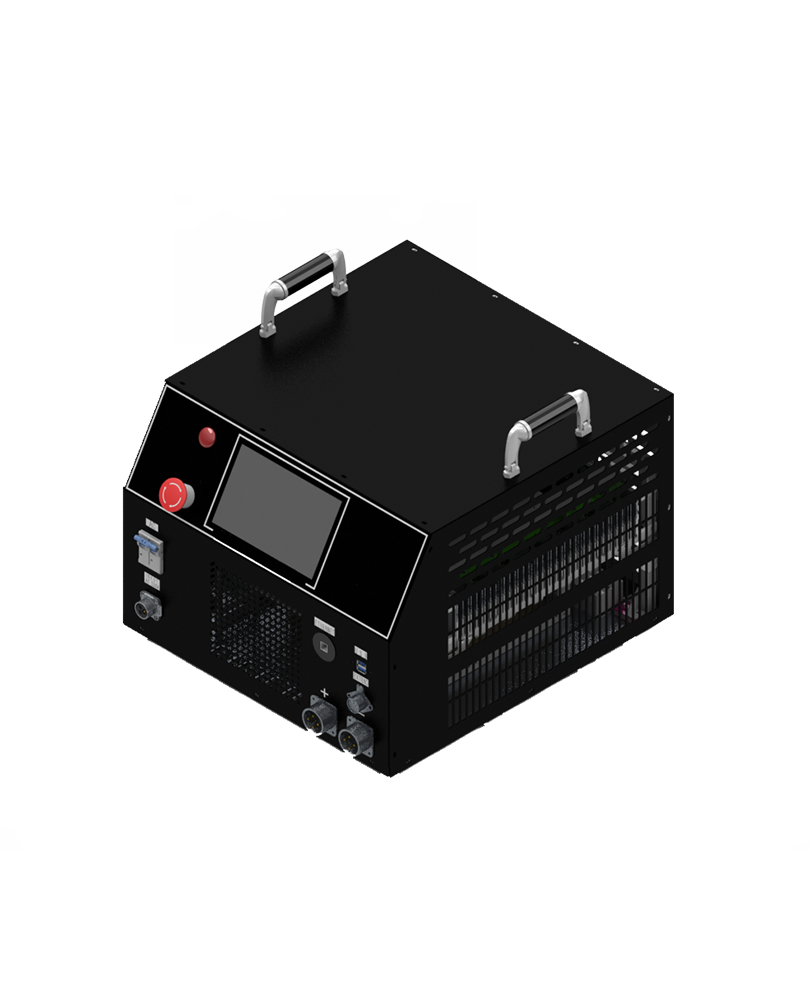

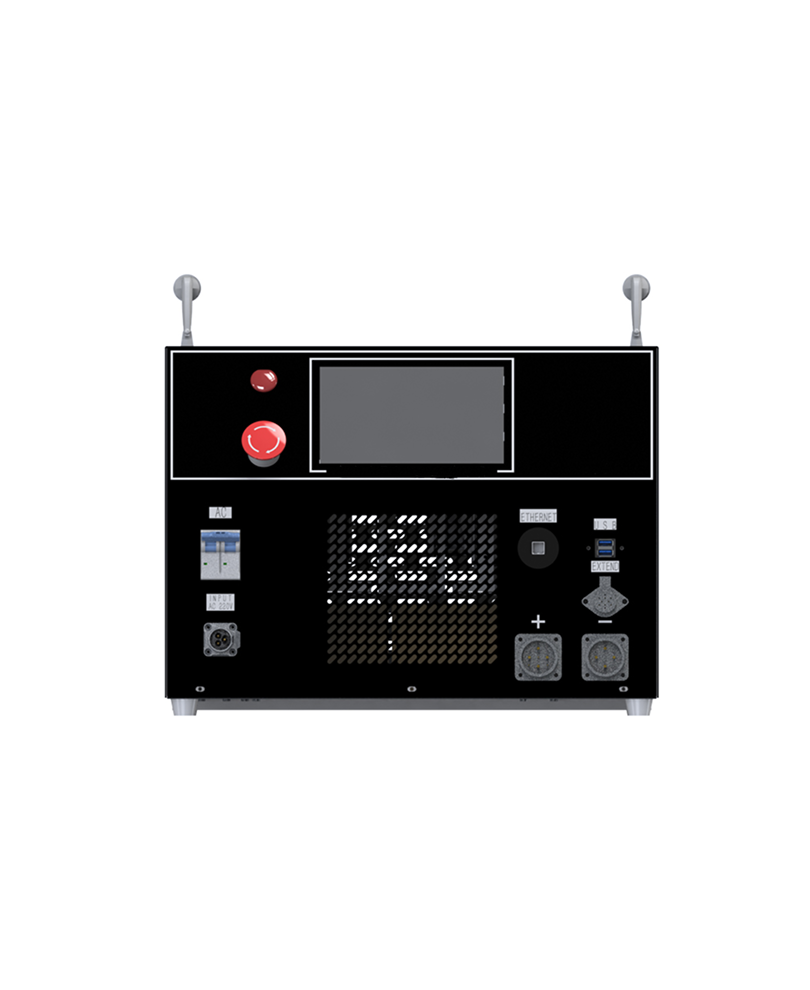

Batterymod uIe ch a rging and discharging

Batterymod uIe ch a rging and discharging

This product is a device used for chargingand discharginglithium batterypack modules. The
batteryvoltage data is collected through the external sampling box, and then the data is
transmitted to the module charging and dischargingequipment through the internal
CAN communication protocol. The target voltage of the device's batterymodule will
automaticallydetermine whether to charge or discharge the batterymodule.
View full details

Product Advantages

  • Power charging

High-power charging and discharging The chargingpower can reach upto 4KW, and the chargingvoltage can reach220V; the discharge power can reach 4KW, and the maximum discharge current is 75A;

  • Simple and convenient to operate

Touch-type design It comes with a 7-inch touch displayscreen, which can set charging and discharging parameters through the screen. It is simple and convenient to operate without an external PC upper computer.

  • Equipment protection

Self-diagnosis of equipment The equipment has output short circuit protection, battery undervoltage protection, battery overvoltage protection, monomer cell inversion protection, chassis overtemperature protection; automatic alarm of major failure of the equipment, buzzer and indicator light alarm prompt;

  • Usingmode

Charge and Discharge Strategy Charge and discharge the batteryaccordingto the intelligent control of the target voltage device, usingmode: Charging: constant current/constant power; Discharge: constant current/constant power.

  • Record files can be visually down loaded.

Data transfer Support USB flash drive data transfer. After the data is uploaded to the pc, the supporting software can generate data reports; record files can be visually down loaded.

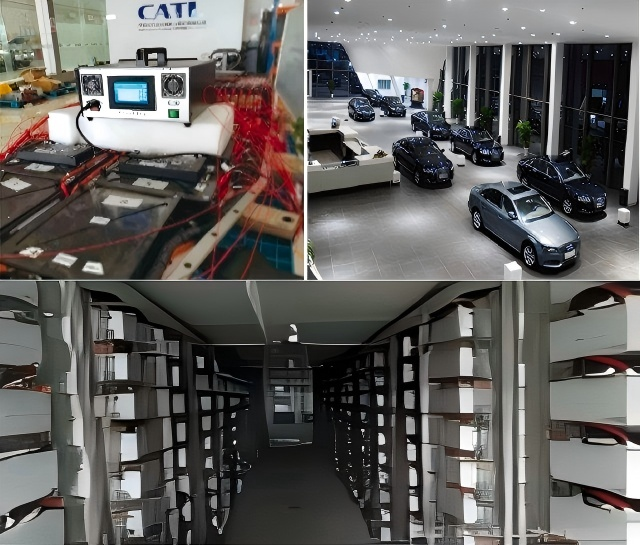

Product Usage Scenarios

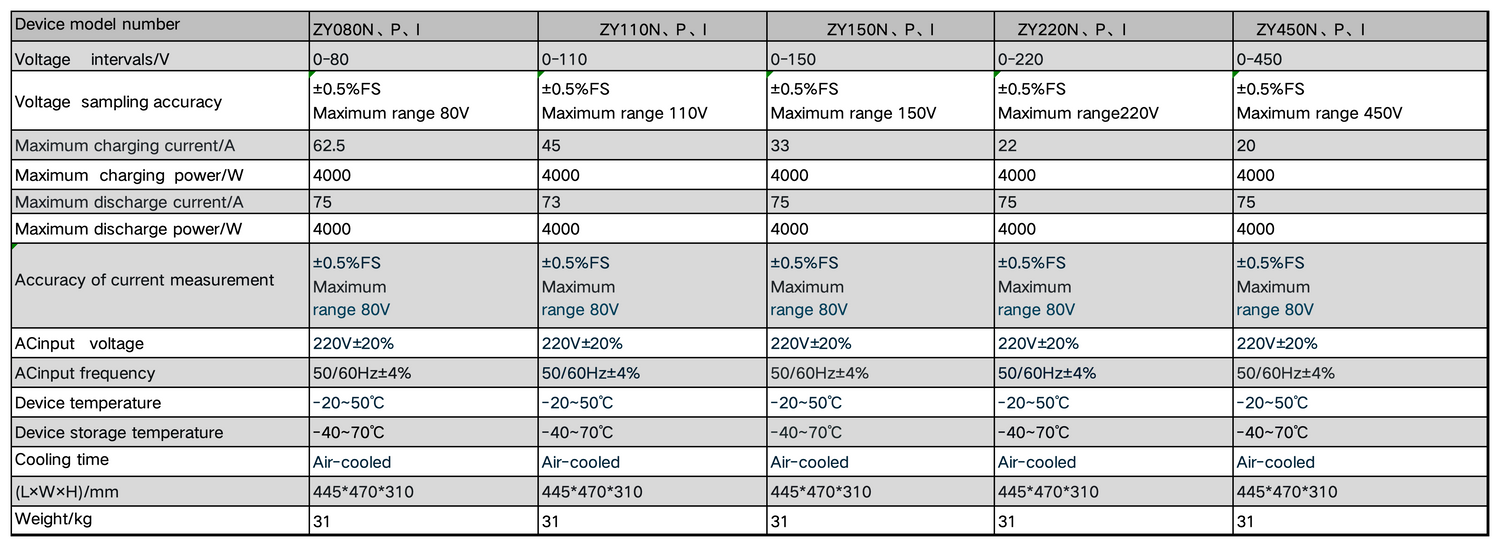

Product Data
